Looking inside the MTrP 2022

Inspired by Ball et al 2022.[1]

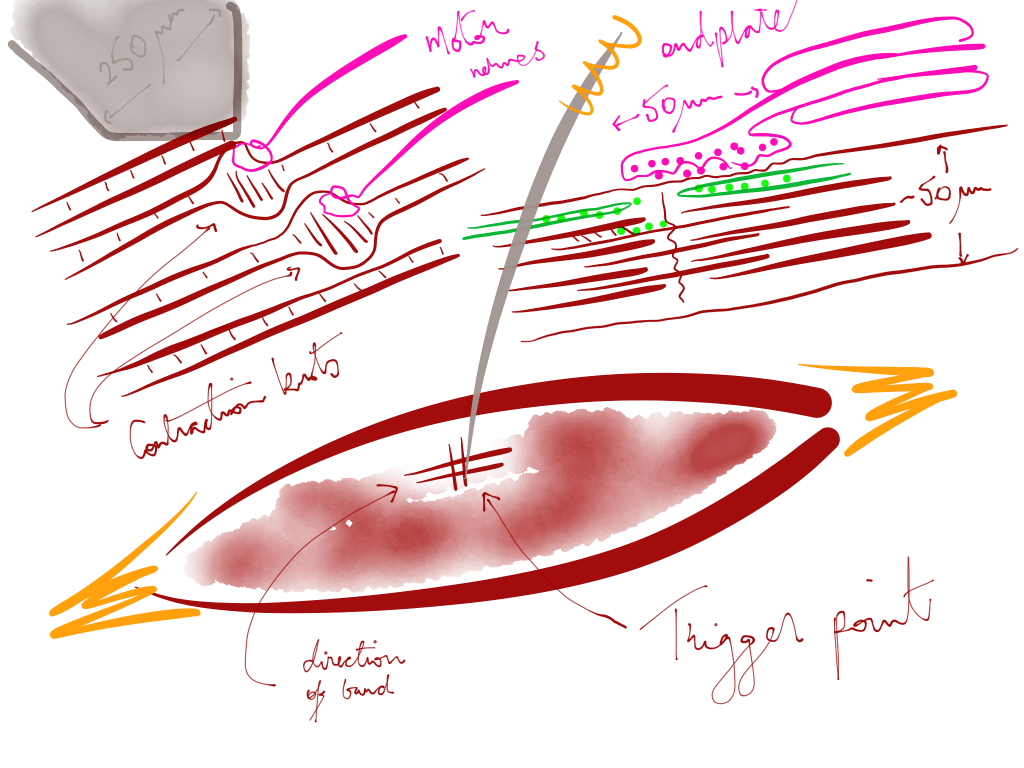

Inside the trigger point drawn by MC on Paper 53 circa 2015.

MTrP – myofascial trigger point
TrP – trigger point (exactly the same as MTrP for those wanting to save a keystroke)
LTR – local twitch response
US – ultrasound
VSE – vibration sonoelastography
SWE – shear wave elastography
DN – dry needling aka trigger point needling
CEUS – contrast enhanced ultrasound
DCS – decompression sickness

key to acronyms

Trigger points, either MTrPs or TrPs, were my first main interest when I swapped my fine hypodermic needles for the even finer solid filiform ones (ie acupuncture needles). Following on from my much-increased use of needling was an interest in the referred pain patterns produced from needling different somatic structures.

Referred pain produced by needling in a primary TrP could be diagnostic if it was clearly recognised by the patient and if the spontaneous pain resolved after needling. Eliciting an LTR at the same time seemed to be associated with a positive outcome in my hands, but this is still somewhat controversial.[2]

This paper describes and interprets for the first time the detailed architecture seen with high-definition US imaging of TrPs from two different patient cases. The findings suggest a reason why repeated needling in the same area produces multiple LTRs in some patients, and that this may be the best approach for the less sensitive individuals with recalcitrant myofascial pain.

The first attempt to reliably detect TrPs with US was published in the late 90s in the journal Pain and was unsuccessful.[3] But just under a decade later a group led by Lynn Gerber in Fairfax, Virginia came up with the idea of applying vibration at the same time as imaging and the stiffer area of the TrP lit up like a black hole.[4] I apologise for the incongruent metaphors. You will understand when you see the typical US images. Generally, muscle looks like a lot of white lines on US, but the TrP shows up as a hypoechoic region (a black hole in the image).

the TrP lit up like a black hole

This group went on to study the differences between active TrPs, latent ones and normal muscle in a blinded evaluation using VSE with colour Doppler.[5] This led to further interest in the blood flow in and around the TrP.[6]

A little later it was a group in Dublin that demonstrated an immediate reduction in stiffness of TrPs using SWE following a single session of needling (DN) performed in the upper trapezius of 7 women.[7] This was repeated by the group from Fairfax in a more comprehensive study on 48 people with chronic myofascial pain.[8] This study utilised 3 sessions of DN and made measurements of stiffness at baseline, 3 weeks and 8 weeks.

Having failed initially in the late 90s,[3] some two decades later with fancier kit we can now reliably find TrPs using US,[9] and can even differentiate active from latent TrPs with something called texture analysis.[10]

Finally, a group in Beijing has even used CEUS in addition to SWE to identify TrPs for biopsy.[11] CEUS uses an intravascular injection of a solution containing lots of tiny bubbles at the same time as performing US and is used as a way of visualising vascular blood volume and transit time.

I have a vague memory of doing something similar to look for significant right to left atrial shunts in commercial divers following an episode of the bends (DCS). I would withdraw ~9mls of blood add ~1ml of air and shake the syringe until there was a homogeneous dark red foamy appearance. When the sonographer had a stable image of the chambers of the heart, I would inject the foamy blood back through the cannula and a few seconds later we would see the shower of bubbles whizz through the right side of the heart. I confess it was slightly counter intuitive to inject air bubbles into a vein, but I trust they all got mopped up in the lungs!

lots of tiny hyperechoic speckles

So, getting back to the latest paper, this has demonstrated that the typical hypoechoic appearance of the TrP is actually filled by lots of tiny hyperechoic speckles. The authors propose that this is compatible with the multiple loci hypothesis of Hong and Simons.[12]

Hypoechogenicity of the TrP nodule is associated with hyperperfusion, but the hyperechogenicity of the speckles is consistent with ischaemic areas within the nodule.

These are exciting times as the denial of the TrP becomes an ever more tenuous position for a clinician to hold.
